Manually Create a Session Host

Avatar
Nerdio Product Support

Warning

Nerdio Manager does not install the BgInfo Azure extension during any automation or management process. However, the BgInfo extension may be installed either through a scripted action directly, or unintentionally, as stated in the Azure PowerShell module issues report.

Nerdio Manager enables you to manually create a session host in a host pool.

To manually create a session host in a host pool:

  1. At the Account level, navigate to Cloud Desktops > AVD > AVD Host Pools.

  2. Locate the host pool you wish to work with.

  3. From the action menu, select Hosts > Add new.

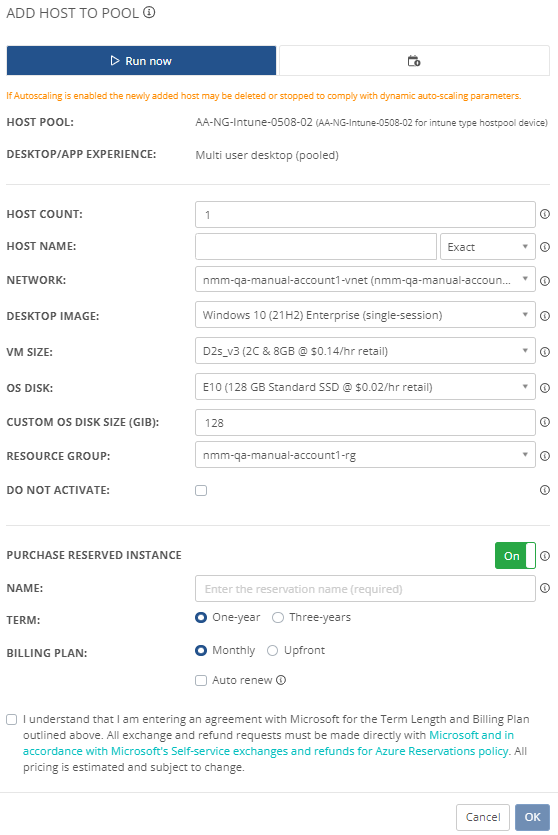

  4. Enter the following information:

    • Run Now or Schedule: Select whether to add the new session host now or as per the schedule specified below.

    • Host Count: Type the number of session hosts to add to the host pool during creation.

    • Host Name: Type the name of the newly added hosts for the Exact name, a Prefix or the Prefix+Pattern.

      • Exact/Prefix/Pattern: From the drop-down list, select whether to use an Exact name, a Prefix, or a Pattern.

        Note

        • Exact applies when adding a single host and specifying an exact name. For example, MYADVHOST.

        • Prefix can be used when creating multiple session hosts. The Prefix limit is 10 valid, Windows computer name characters. When using a Prefix, a unique suffix is automatically appended in the format "-xxxx", where xxxx are 4 random alphanumeric characters. For example: AVDHOST-s72h. Do not add a "-" to the Prefix.

        • Pattern can be used to specify an advanced naming convention for new hosts. Pattern characters must be enclosed in {} and can be # (for sequential numbers) and/or ? (for random alphanumeric characters). One # implies numbers from 0 to 9, two #s implies numbers of 0 to 99, etc.

          • Example 1: AVDHOST{###} (AVDHOST000..AVDHOST999).

          • Example 2: AVDHOST-{???} (AVDHOST-d83, AVDHOST-7sl, etc.).

    • Network: From the drop-down list, select the network. The network determines the Azure region of the VM.

    • Desktop Image: From the drop-down list, select the desktop image that is used as the golden image for newly created session hosts.

    • VM Size: From the drop-down, select the VM disk size and type for newly created session hosts.

    • OS Disk: From the drop-down list, select the OS Disk type and size for newly created session hosts.

    • Custom OS Disk Size (GIB): From the drop-down list, select the custom OS Disk size.

    • Resource Group: From the drop-down list, select the resource group to contain the VMs.

    • Do not activate: Select this option to set the new session host in drain mode.

    • Purchase Reserved Instance: Toggle ON this option to purchase a reservation for the same VM size and in the same region as the VM(s) created.

      • Name: Type the reservation name.

      • Term: Select the term.

      • Billing Plan: Select the billing plan.

      • Auto renew: Select this option to automatically renew the reserved instance.

      • License Agreement: Select this option to agree to the license agreement.

    • Schedule: Enter the schedule information to run this job per the schedule.

  5. Once you have entered all the desired information, select Run now (not scheduled) or Save & close (scheduled).
