FSLogix Cloud Cache

FSLogix profiles are a central feature of AVD desktops. FSLogix Cloud Cache adds a layer of reliability and resiliency to the critical FSLogix profiles component of AVD.

Cloud Cache allows you to specify multiple profile storage locations. Enabling Cloud Cache on a host pool asynchronously replicates the FSLogix profiles and makes the profiles available in multiple storage locations at the same time. The VHD data is temporarily cached on a session host VM and then is asynchronously written to one or more locations specified. For example, one location could be a Azure Files share, while another location a file server share. If the first location fails for some reason, the session host with FSLogix cloud cache configuration automatically failovers to use the second location, and so on. You can specify up to four locations.

Companion Video

FSLogix Profile Storage Setting

You can enable Cloud Cache for an FSLogix Profile storage.

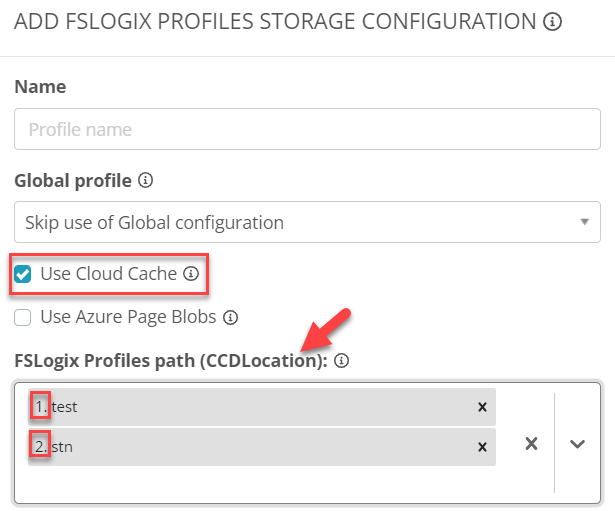

To enable Cloud Cache for an FSLogix Profile storage:

1. At the Account level, navigate to Settings > Integrations.

2. In the FSLogix Profiles storage tile, either edit an existing profile or add a new profile.



3. Select Use Cloud Cache to enable Cloud Cache.

   Note: Please notice the that the FSLogix Profile path now says CCDLocation instead of VHDLocation.

4. In FSLogix Profile path, enter up to four CCDLocation paths.

   Note: The paths are numbers. You can drag and drop the paths to change the order.

FSLogix on Host Pool Properties

You can enable Cloud Cache for a host pool.

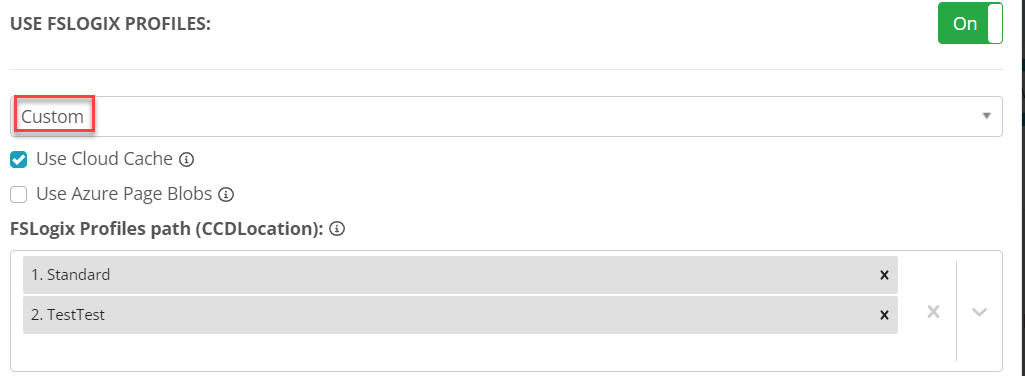

To enable Cloud Cache for a host pool:

1. At the Account level, navigate to AVD > Host Pools.

2. Locate the host pool you wish to work with.

3. From the action menu, select Properties > FSLogix.



4. Enter the following information:

   • Use FSLogix Profiles: Toggle this option ON.

   • Profile: From the drop-down list, select Custom.

   • Use Cloud Cache: Select this option to enable Cloud Cache.

   • FSLogix Profile path, Enter up to four CCDLocation paths.

     Note: The paths are numbers. You can drag and drop the paths to change the order.
